Wheel Shop SUN HELIX TR27 SL / SRC 700C

Rims: SUNRingle Helix TR27SL 700C

• ETRTO 662-23

• External width: 27mm

• Inner width: 23mm

• Height: 20mm

• Performant and durable for Gravel or All Road

• Strong sleeve joint

• Tubeless compatible

• Single Stainless Steel eyelets

• For Presta valve

• 32 holes

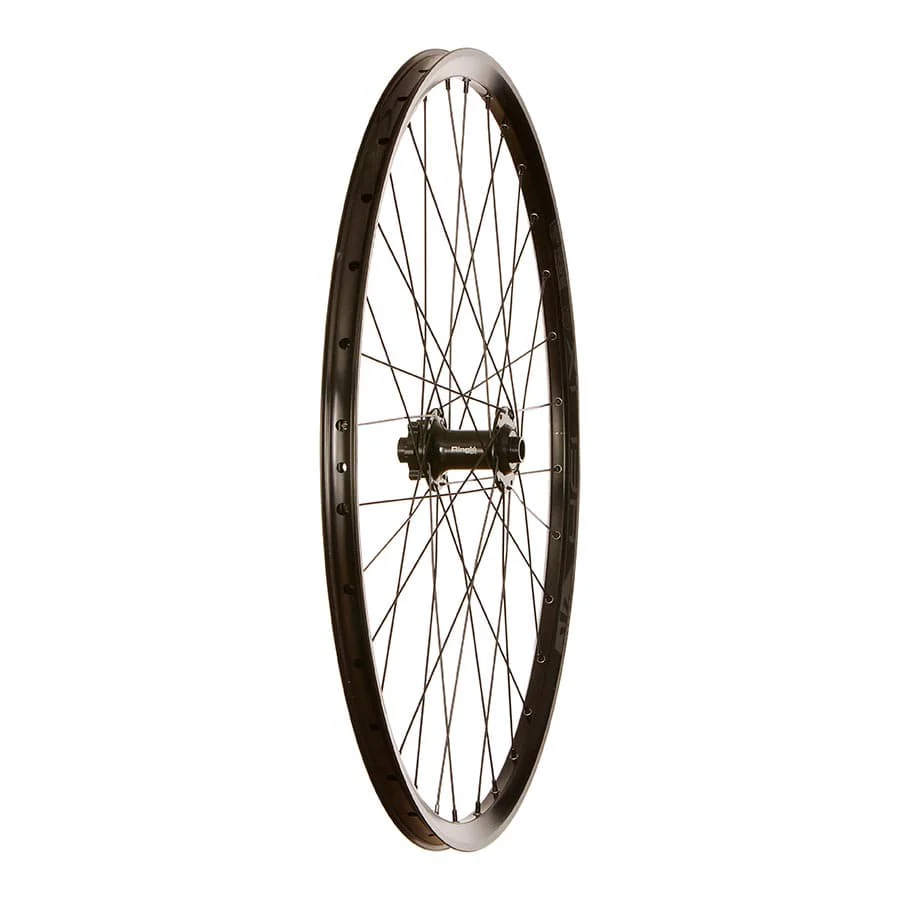

  Front hub: SUNRingle SRC

• TA12x100mm

• 6 Bolt

• 2x Sealed bearings

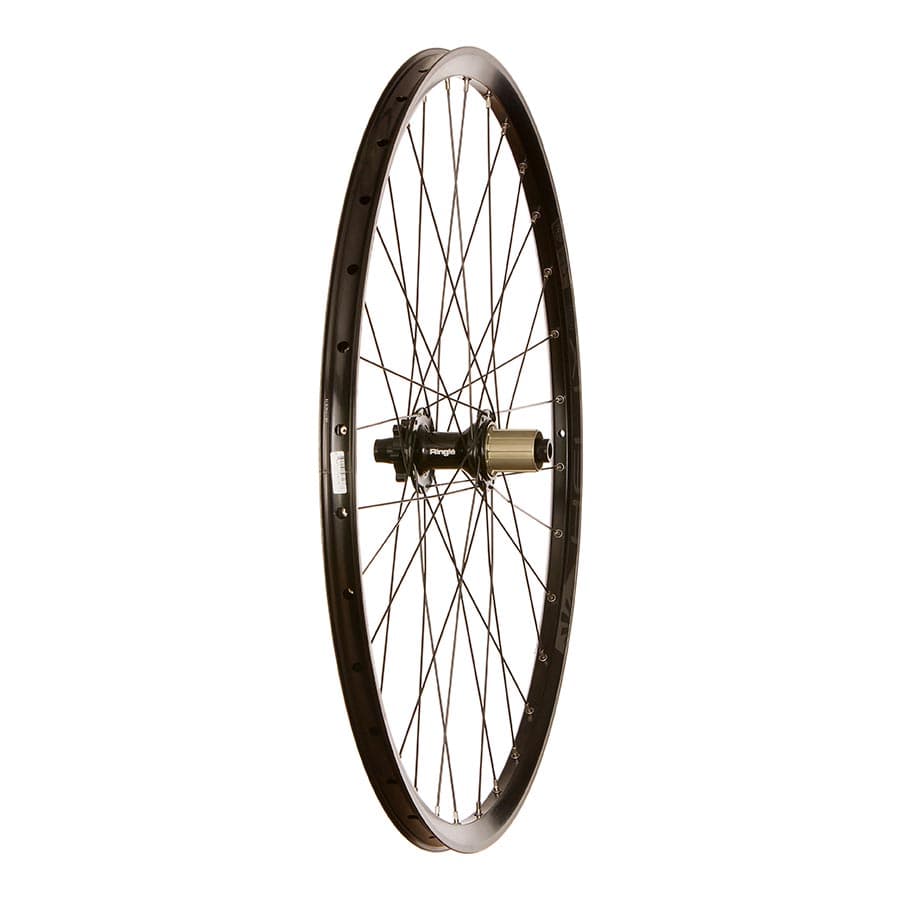

  Rear hub: SUNRingle SRC HG11

• TA12x142mm

• 6 Bolt

• 3 Double tooth pawl and ratchet system

• 12 deg / 30 points of engagement

• 4x Sealed bearings

• Compatible with 11/12 speed Road (10 speed compatibility requires 1.85mm spacer, not incl.)

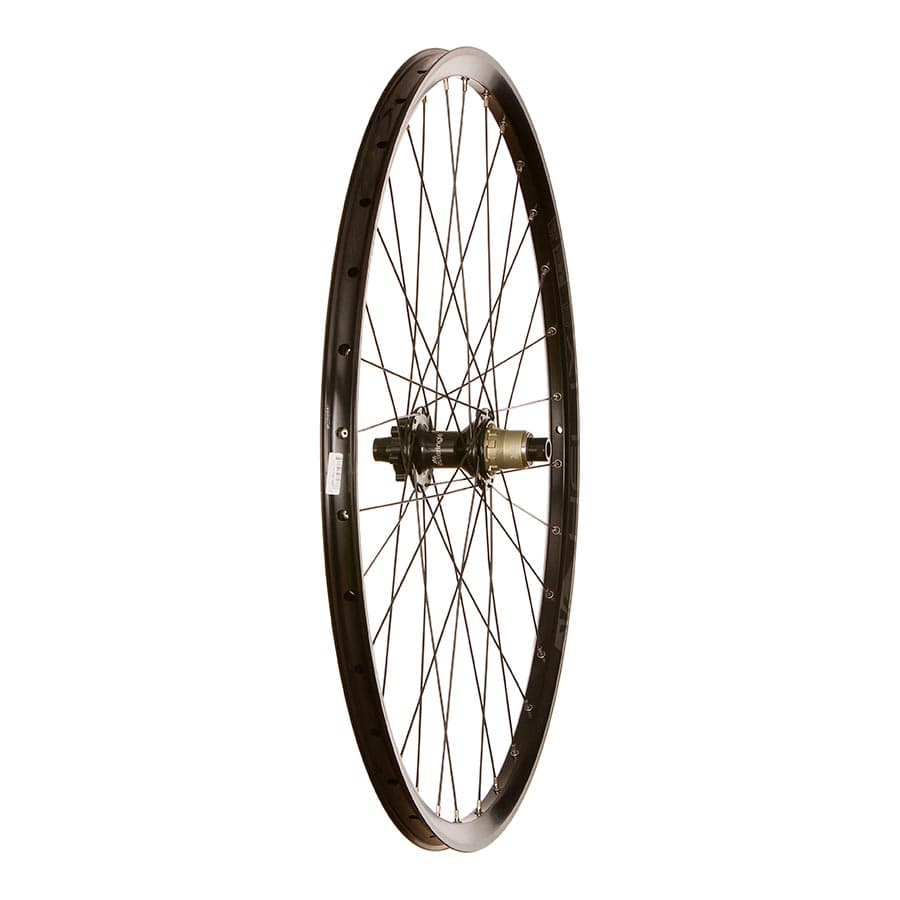

  Rear hub: SUNRingle SRC XD

• TA12x142mm

• 6 Bolt

• 3 Double tooth pawl and ratchet system

• 12 deg / 30 points of engagement

• 4x Sealed bearings

• Compatible with SRAM XD

  Fully serviceable and convertible hubs

  Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)

Attributes

Axle Type	12mm TA
Depth	23mm
Hub Model	SunRingle SRC
Rim Color	Black
Rim Construction	Double wall, Sleeved
Rim Drilling	32
Rim External Width	27mm
Rim inner width range	22-27.9mm
Rim Internal Width	24mm
Rim Material	Aluminum
Rim Model	Helix TR27 SL
Skewers Included	No
Spoke Type	Sapim Race
Valve	Presta
Wheel Diameter/ISO	700C / 622
Wheel Tire Type	Tubeless Compatible
Wheel-Brake Comp.	Disc IS 6-bolt
